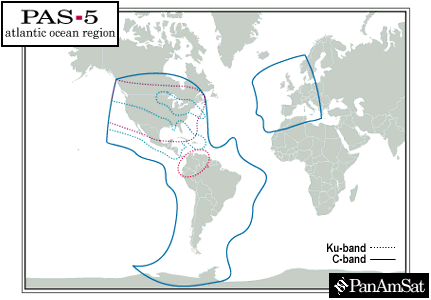

Service delivery area

Satellite Name	PAS-5
Spacecraft Design	Hughes HS 601 HP
Orbital Location	58 degrees West Longitude
Launch Date	July 1997
Launch Vehicle	Proton
End of Life	2012
Polarization	Linear
C-band Payload Ku-band Payload	24 x 36 MHz -- 50 Watt Output Americas Beam (24) 24 x 36 MHz -- 110/60 Watt Output Mexico Beam (12) US Beam (6) Steerable Spot (6)
C-band Frequencies Uplink Downlink	5.925 - 6.425 GHz 3.700 - 4.200 GHz
Ku-band Frequencies Uplink Downlink	12.750 - 13.250, 14.000- 14.250 GHz 10.70 - 10.95, 11.20 - 11.70 GHz
Coverage	Americas, Europe
